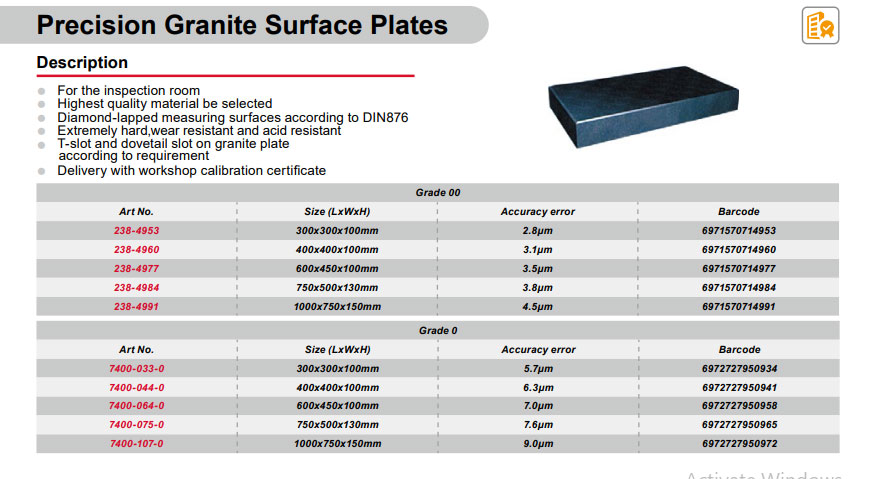

Precision Granite Surface Plates
Description
-
For the inspection room
-
Highest quality material be selected
-
Diamond-lapped measuring surfaces according to DIN876
-
Extremely hard, wear resistant and acid resistant
-
T-slot and dovetail slot on granite plate according to requirement
-
Delivery with workshop calibration certificate
Grade 00
| Art No. | Size (LxWxH) | Accuracy error | Barcode |
|---|---|---|---|
| 238-4953 | 300x300x100mm | 2.8µm | 6971570714953 |
| 238-4960 | 400x400x100mm | 3.1µm | 6971570714960 |
| 238-4977 | 600x450x100mm | 3.5µm | 6971570714977 |
| 238-4984 | 750x500x130mm | 3.9µm | 6971570714984 |
| 238-4991 | 1000x750x150mm | 4.5µm | 6971570714991 |
Grade 0
| Art No. | Size (LxWxH) | Accuracy error | Barcode |
|---|---|---|---|
| 7400-037-0 | 300x300x100mm | 5.7µm | 6972727950934 |
| 7400-044-0 | 400x400x100mm | 6.3µm | 6972727950941 |
| 7400-051-0 | 600x450x100mm | 6.9µm | 6972727950958 |
| 7400-075-0 | 750x500x130mm | 7.6µm | 6972727950965 |
| 7400-107-0 | 1000x750x150mm | 9.0µm | 6972727950972 |
