General Gauge For High Pressure Fuel Rail (Customized)
Description
Application:
-
Geometrical tolerance measurement of automobile fuel rail
-
Quick measurement on site to select on-spec. parts
Gauge to measure the position accuracy through pin mechanism, especially for mechanically processed holes, to measure the profile of end face through scribing bar/touch gauge, and to measure distance between faces/parallelism/perpendicularity through gauge with dials.

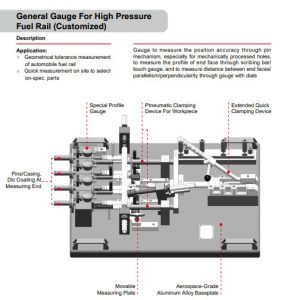

Komponen pada Gambar
-
Special Profile Gauge
-
Pneumatic Clamping Device For Workpiece
-
Extended Quick Clamping Device
-
Pins/Casing, DLC Coating At… Measuring End
-
Movable Measuring Plate
-
Aerospace-Grade Aluminum Alloy Baseplate
