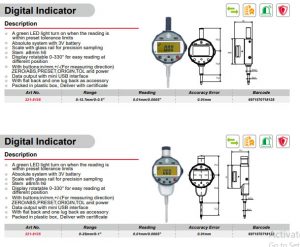

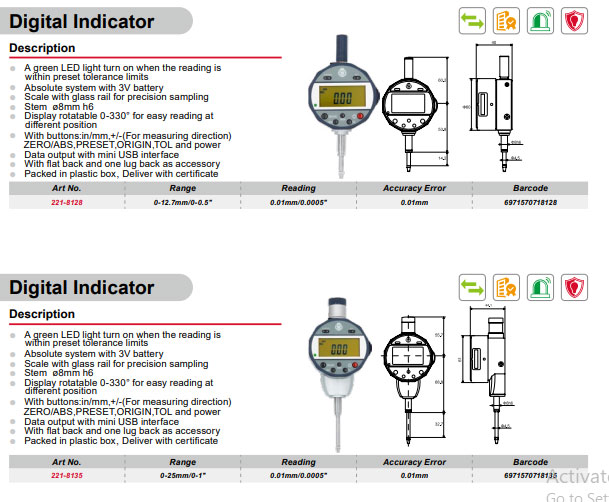

Digital Indicator
Description
-
A green LED light turn on when the reading is within preset tolerance limits
-
Absolute system with 3V battery
-
Scale with glass rail for precision sampling
-
Stem ø8mm h6
-
Display rotatable 0–330° for easy reading at different position
-
With buttons in/mm,+/– (for measuring direction) ZERO/ABS, PRESET/ORIGIN, TOL and power
-
Data output with mini USB interface
-
With flat back and one lug back as accessory
-
Packed in plastic box, Deliver with certificate
| Art No. | Range | Reading | Accuracy Error | Barcode |
|---|---|---|---|---|
| 221-8128 | 0–12.7mm/0–0.5” | 0.01mm/0.0005” | 0.01mm | 697157078128 |
Digital Indicator
Description
-
A green LED light turn on when the reading is within preset tolerance limits
-
Absolute system with 3V battery
-
Scale with glass rail for precision sampling
-
Stem ø8mm h6
-
Display rotatable 0–330° for easy reading at different position
-
With buttons in/mm,+/– (for measuring direction) ZERO/ABS, PRESET/ORIGIN, TOL and power
-
Data output with mini USB interface
-
With flat back and one lug back as accessory
-
Packed in plastic box, Deliver with certificate
| Art No. | Range | Reading | Accuracy Error | Barcode |
|---|---|---|---|---|
| 221-8135 | 0–25mm/0–1” | 0.01mm/0.0005” | 0.01mm | 697157078135 |
