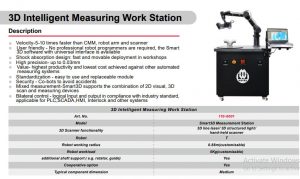

3D Intelligent Measuring Work Station
Description
-
Velocity – 5-10 times faster than CMM, robot arm and scanner
-
User friendly – No professional robot programmers are required, the Smart 3D software with universal interface is available
-
Shock absorption design: fast and movable deployment in workshops
-
High precision – up to 0.03mm
-
Value – highest productivity and lowest cost achieved against other automated measuring systems
-
Standardization – easy to use and replaceable module
-
Security – Co-bots to avoid accidents
-
Mixed measurement – Smart3D supports the combination of 2D visual, 3D scan and measuring devices
-
Bilateral control – logical Input and output in compliance with industry standard, applicable for PLC, SCADA, HMI, Interlock and other systems
3D Intelligent Measuring Work Station
| Art. No. | 110-0001 |
|---|---|
| Model | Smart3D Measurement Station |
| 3D Scanner functionality | 3D line laser/3D structured light/hand-held scanner |
| Robot | T |
| Robot working radius | 0.88m (customizable) |
| Robot workload | 5kg (customizable) |
| Additional shaft support (e.g. rotator, guide) | Yes |
| Cooperative option | Yes |
| Typical component dimension | Medium |
